MXR M238 ISO BRICK MULTI PEDAL POWER SUPPLY

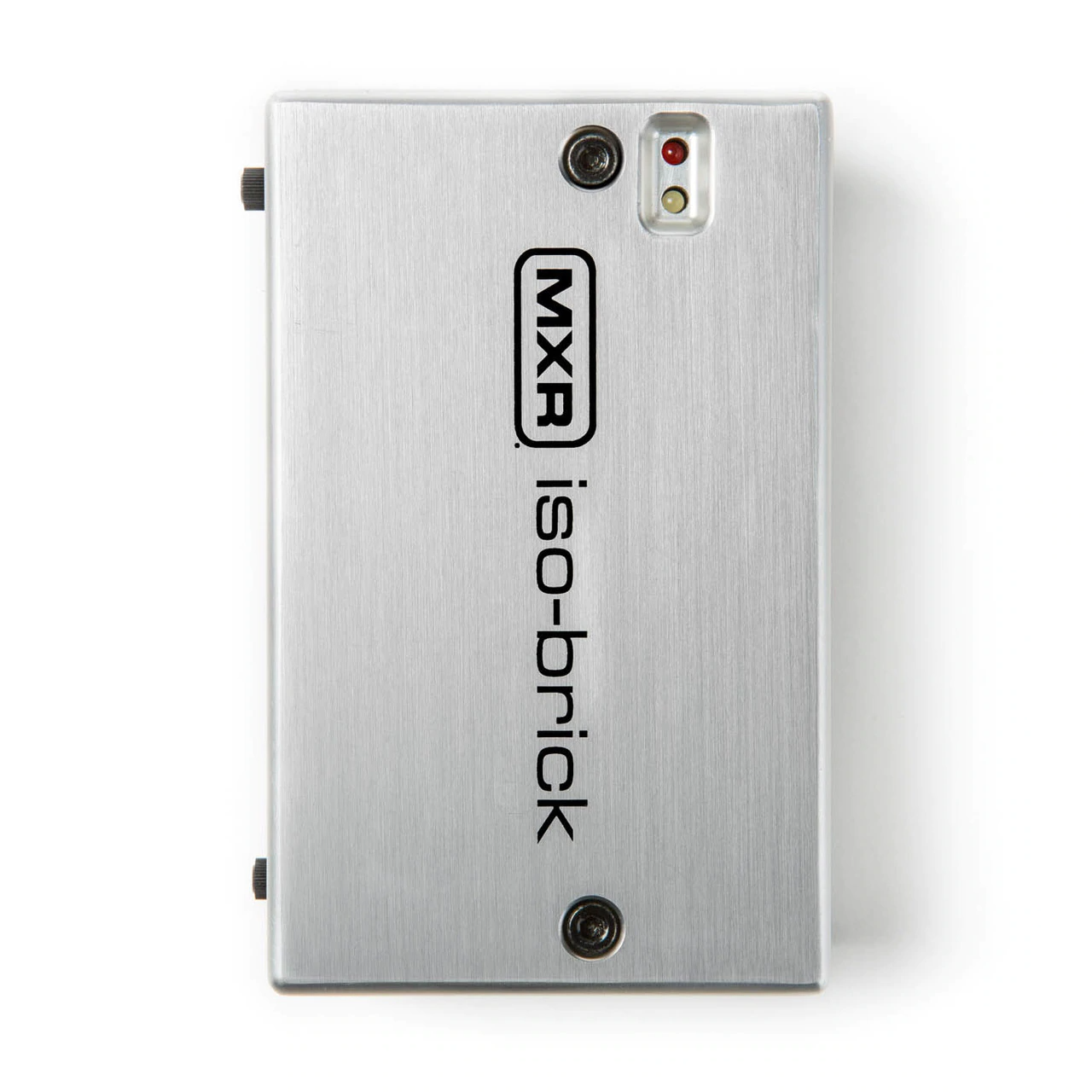

MXR® ISO-BRICK™ POWER SUPPLY

M238

This power supply is light and pedalboard-friendly with ten fully isolated outputs ranging from 9V to 18V—including two variable 6V–15V outputs—and special noise-reduction circuitry for quiet operation.



SPECIFICATIONS
INPUT 18V @ 2 Amps regulated supply (positive barrel negative center 5.5mm x 2.1mm plug) OUTPUTS 6-15V @ 250mA (2) 18V @ 250mA (2) 9V @ 450mA (2) 9V @ 300mA (2) 9V @ 100mA (2) (all positive barrel negative center 5.5mm x 2.1mm)
